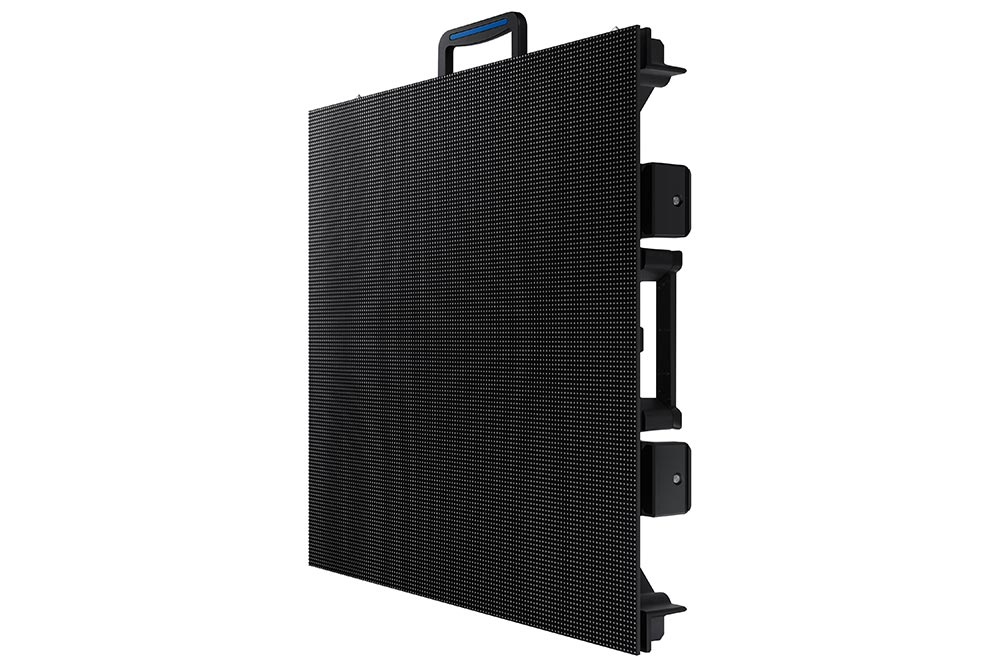

XRB Series XRB029
Mesmerize passers-by with brilliant content
- Clear, brilliant visuals by 5,000nit brightness and 3,840Hz refresh rate
- Compact design for effortless installation and more practical maintenance
- Flexible installation for any location such as hanging, stacking, and L-type
- Optimum performance in any environment by IP65 and UV-resistant materials
Pixel pitch
Features
Mesmerize passers-by with brilliant content
Meet the XRB series, the outdoor display optimized for delivery of information at a close distance. With crisp, clear visibility enabled by brilliant picture quality, the display captivates audiences while easy installation and maintenance improves business operation efficiency.
Clear, brilliant visuals
Catch the eye of passers-by with vibrant visuals. Featuring 5,000nit brightness, the XRB series is clearly visible even in direct sunlight, providing flawless content when viewed from close distance whether a customer is just passing by or walking into the store.
Compact design that allows for effortless installation

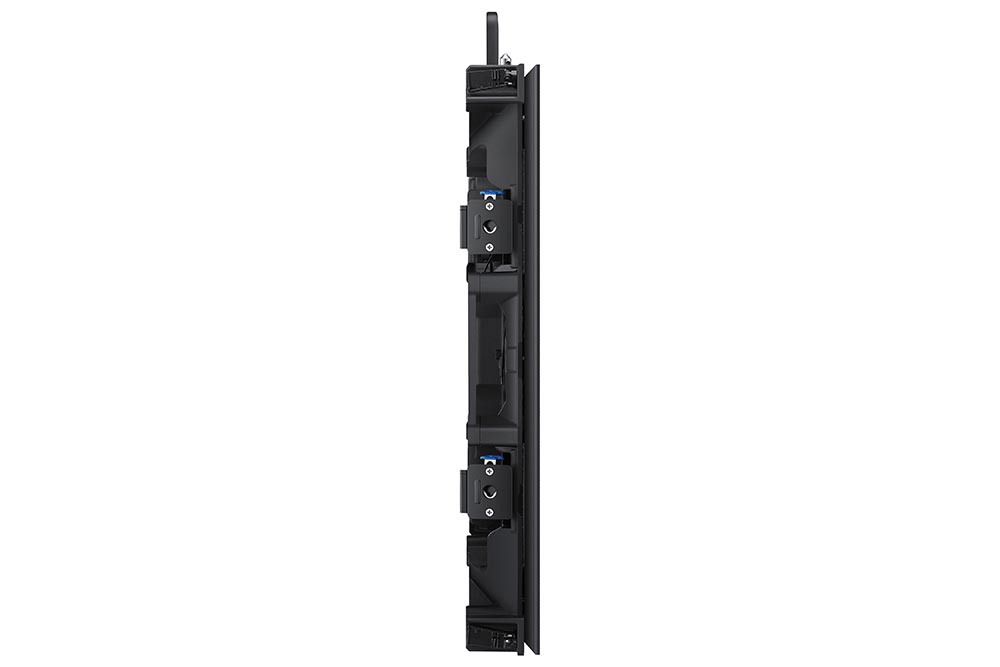

Install with ease. Samsung’s XRB series now offers much simpler and easier installation, meaning the display can be up and running quicker than ever before. The two cabinets, weighing only 7.8kg or 14kg, are super slim at just 64mm thick, allowing one-man handling for even faster setup.
* Thickness is based on P2.9 cabinet. P3.9 cabinet is 64.5mm thick.
Flexible installation for any location
A variety of installation options make the XRB series an optimal solution for any business needing an outdoor display. Multiple accessories are provided to enable easy setup of displays across a versatile range of environments, including hanging, stacking and L-type installation.
Simple, practical maintenance
With all components being detachable – from the power box to the modules – the XRB series supports full front and rear service, making maintenance simpler and more practical even in limited spaces, while ensuring minimal business downtime.
Optimum performance in any environment
Built to withstand the elements. With a full outdoor IP65/65 validated design, the XRB series delivers continuous performance regardless of the environment. The display is also equipped with UV-resistant materials, preventing further penetration of UV light to preserve its appearance.
Specs
Physical Parameter
| Cabinet Type | XRB2.9-X | XRB2.9-Y | XRB2.9-L | XRB2.9-R | XRB2.9-S |
|---|---|---|---|---|---|
| Model Name | LH029XRBCXC | LH029XRBCYC | LH029XRBCLC | LH029XRBCRC | LH029XRBCSC |
| Pixel Pitch | 2.9 mm | 2.9 mm | 2.9 mm | 2.9 mm | 2.9 mm |
| Pixel Configuration | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 |
| Pixel Density (㎡) | 112,896 pixels/m² | 112,896 pixels/m² | 112,896 pixels/m² | 112,896 pixels/m² | 112,896 pixels/m² |
| Pixel Density (Cabinet) | 28,224 pixels/panel | 56,448 pixels/panel | 28,224 pixels/panel | 28,224 pixels/panel | 56,448 pixels/panel |
| Physical Resolution of Module (W × H) |
84 × 168 | 84 × 168 | 84 x 168 | 84 × 168 | 84 × 168 |
| Physical Resolution of Cabinet (W × H) |
168 × 168 | 168 × 336 | 168 x 168 | 168 × 168 | 168 × 336 |
| LED Module Dimensions (mm) | 250 x 500 mm | 250 x 500 mm | 250 x 500 mm | 250 x 500 mm | 250 x 500 mm |
| No. of Modules Per Cabinet (W × H) | 2 x 1 | 2 x 2 | 2 x 1 | 2 x 1 | 2 x 2 |
| Cabinet Dimensions (W × H × D) (mm) |
500× 500 × 64 mm | 500× 1000 × 64 mm | 500× 500 × 64 mm | 500× 500 × 64 mm | 500× 1000 × 64 mm |
| Weight Per Cabinet (kg/Cabinet) | 7.8±5% kg/Cabinet | 14±5% kg/Cabinet | 7.1±5% kg/Cabinet | 8±5% kg/Cabinet | 14.2±5% kg/Cabinet |
| Weight Per kg/㎡ | 31.2±5% kg/m² | 28±5% kg/m² | 28.4±5% kg/m² | 32±5% kg/m² | 28.4±5% kg/m² |
| Cabinet Material | Aluminum Diecasting | Aluminum Diecasting | Aluminum Diecasting | Aluminum Diecasting | Aluminum Diecasting |
- Pixel Pitch2.9 mm
- Pixel ConfigurationSMD 3-in-1
- Pixel Density (㎡)112,896 pixels/m²
- Pixel Density (Cabinet)28,224 pixels/panel
- Physical Resolution of Module (W × H)84 × 168
- Physical Resolution of Cabinet (W × H)168 × 168
- LED Module Dimensions (mm)250 x 500 mm
- No. of Modules Per Cabinet (W × H)2 x 1
- Cabinet Dimensions (W × H × D) (mm)500× 500 × 64 mm
- Weight Per Cabinet (kg/Cabinet)7.8±5% kg/Cabinet
- Weight Per kg/㎡31.2±5% kg/m²
- Cabinet MaterialAluminum Diecasting
- Size of LED color bin combinationR: 5nm, G:4nm, B:4nm
