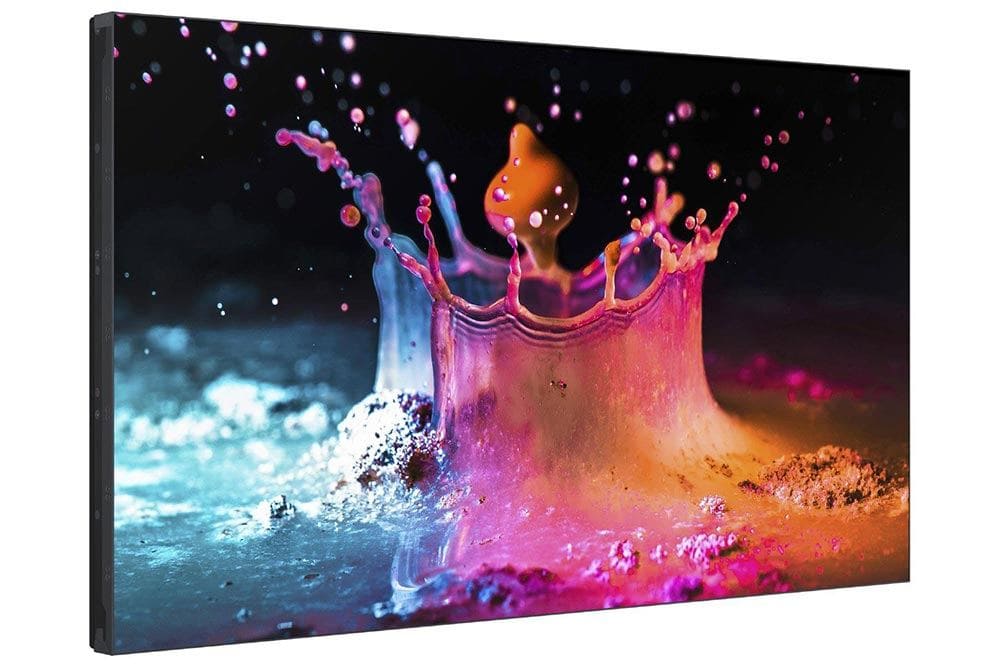

Powerful video wall solution with advanced color calibration and seamless bezel design
- Multifaceted UHD video wall solution based on daisy chain through the use of Display Port (DP) 1.2
- Brightness uniformity and color accuracy with Samsung Color Expert Technology and factory calibration
- Ultra-narrow 3.5mm bezel-to-bezel design for a near-seamless appearance of the video wall
- Clear message through an anti-glare panel (haze 44%), with reliable 24/7 operation
Discover our Videowall Configurator.Samsung Configurator is a simulation tool that enables you to virtually install Samsung’s Videowall display and precisely determine your needs and desired result in advance.
Achieve Ultimate Picture Quality through Advanced Calibration
Any irregularity in a video wall’s brightness and color accuracy across displays can negatively impact the viewing experience. To eliminate these types of color expression gaps and maintain a fully-aligned, consistent and captivating presentation, Samsung’s UDE-B Series video walls feature advanced factory tuning, innovative hardware and exceptional user calibration tools. Samsung’s multi-step factory calibration process tunes video wall displays to the highest-performing uniform brightness and color across each display. After calibration, these displays offer an industry-leading local uniformity of more than 90 percent across 25 (5x5) areas of each display screen, resulting in uniform color expression across the entire display. The calibration process also enables the displays to offer a superior white balance difference of less than 300 degrees K.*
In addition to rigorous factory calibration, users can manage brightness and color uniformity conveniently with Samsung Color Expert, a powerful free software program. Through these advanced color management solutions, the UDE Series video walls enable large-scale presentations to feature superior uniformity, consistency and performance for the ultimate in color expression.
Captivate Audiences through a Narrow Bezel and Optimized Panel Design
The enhanced panel quality of Samsung’s UDE-B video wall (available in 46- and 55-inch sizes) elevates visual messaging and content through a seamless image and superior clarity. Featuring an ultra-narrow 3.5mm bezel-to-bezel design format (2.3mm bezel on the left and top sides and 1.2mm bezel on the right and bottom sides), which is the slimmest bezel in the video wall industry, the display creates a virtually uninterrupted viewing experience to keep audiences focused on content rather than the display itself.
When exposed to a range of environmental conditions, video wall panels can run the risk of losing image quality due to distortion and irregular color presentation. To provide consistent display clarity uninterrupted message delivery in any operational environment, Samsung’s UDE-B video wall panels undergo rigorous performance testing. Each display features a reinforced panel that deters heat, weather and other stress-inducing conditions. As a result, Samsung’s superior panel prevents screen darkening, light leakage or any related deterioration in picture quality. Plus, an anti-glare panel to ensure messages reach relevant audiences with minimal distraction by light reflection – All these enhanced panel quality allows the long term delivery of brilliant contents and the ultimate viewing experience
Achieve UHD Picture Quality without Additional Devices through
With an increase in screen size, content resolution becomes even more important to deliver impactful content. As the industry’s first video walls to feature integrated DisplayPort (DP) 1.2 and HDMI ports, Samsung’s UDE-B Series video walls, UDE-B, can display Ultra-High Definition (UHD) contents across video wall configurations as large as 5x5 without the purchase of additional expensive devices. In comparison to conventional video walls that typically require added equipment and only accommodate up to a 2x2 arrangement, the UDE-B Series’ UHD presentation represents a sharp improvement. By supporting High-Bandwidth Content Protection (HDCP) daisy chains, the UDE-B Series video walls also can display UHD content, such as live TV or Blu-Ray discs, without having to purchase additional equipment, minimizing the cost of deploying multiple displays as part of large-scale promotional signage or informational presentations.
High-Performing Display Readability and Durability for your Business Environment
Samsung’s UDE-B Series video walls deliver a continuously immersive and engaging viewing experience through high-performing readability and durability. Designed for 24/7 continuous operation in challenging environments, the UDE-B Series video walls operate at the speed of your business without losing performance or display quality. The displays offer 500 nit brightness to broadcast vivid, highly legible images and visual messaging in various lighting conditions.
The combination of these embedded design benefits makes the UDE-B Series video walls ideal for content and information delivery in usage environments that require enhanced readability, such as transportation terminals, shopping malls, office lobbies and control rooms.
A Slim, Easily Configurable Wall Mount* Adaptive to your Business Needs
Samsung’s versatile UDE-B Series video walls come equipped with a range of user-friendly features to ensure a seamless installation complementary to your specific operational needs. Featuring the same dimension with a video wall, the users can simply install the mount first and fit into the video wall, without spending time to measure dimension of wall mount and calculate the gapThe displays come with an industry-leading slim, 39mm depth video wall mount for easy installation and calibration to hold each display in place without distracting viewers. The mount system offers three-dimensional axis tuning, including x-axis (up-and-down with rotational screws); y-axis (left and right with rail movement); and z-axis (push and pull pop-up capability), for effortless alignment of individual displays to form a continuous, gap-free video wall. This wall mount dimensional consistency and easy adjustability prevents users from having to measure distances when setting up each display, while also eliminating the need to dismantle the entire video wall should one specific section need adjustment
*Additional purchase required for wall mount
- Diagonal Size55"
- TypeD-LED DID
- Resolution1920*1080 (Full HD)
- Pixel Pitch(mm)0.63mm(H) * 0.63mm(V)
- Active Display Area(mm)1209.6 * 680.4mm
- Brightness(Typ.)500 nit
- Contrast Ratio4000:1
- Viewing Angle(H/V)178/178
- Response Time(G-to-G)8ms
- Display Colors8 bit - 16.7M
- Color Gamut72%
SUCCESS STORY Interactive Whiteboards Advance Learning at The King`s Academy
Take a 360-degree look inside a classroom and a media production studio during a virtual tour of the new technologies being used at The King’s Academy (TKA), a K-12 faith-based private school in West Palm Beach, Florida. Use a Samsung Gear VR headset or...
SUCCESS STORY The Jet Business
In 2017, when planning to renovate the showroom at Park Lane, London, The Jet Business shared their specific requirement to replace its old-fashioned video wall with a brand-new large-scale one in order to show all schematically jets full size to their clients. The new video wall was also required to have spectacular, high brightness with easy maintenance. Understanding customer's needs, Samsung offered its smart video wall signage (UDE-B 55") and successfully installed a massive product-configurator video wall that completely satisfied the customer.
SUCCESS STORY Cheongju University Central Library
Cheongju University renovated its central library after three decades of its opening with Samsung SMART Signage that stands out in the renovated library. The Signage has transformed the central library into a smart library with state-of-the-art technology.
SUCCESS STORY CGV Sangam
Korean Multiplex CGV Sangam has recently implemented “Samsung SMART Signage,” which receives great attention for advanced technologies, to provide high-quality customer service.
SUCCESS STORY SKINFOOD Gangnam-daero Branch
Korean Cosmetic brand Skinfood's Gangnam-daero branch, the flagship store of the brand recently installed Samsung SMART Signage to realize its eye-catching interior design, differentiated customer service, and unique concept that combines beauty and with lifestyle.
- IncludedQuick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries,
- Mount WMN-55VD
- Media PlayerSBB(Slide In/Optional), Signage player box(Optional)
