OH55A
Deliver bright and brilliant messages, built for the outdoors
- UL-verified for outdoor visibility with greater brightness than 3,500nit and 24/7 performance
- Enhanced visibility with anti-reflection technology by Magic Protection Glass

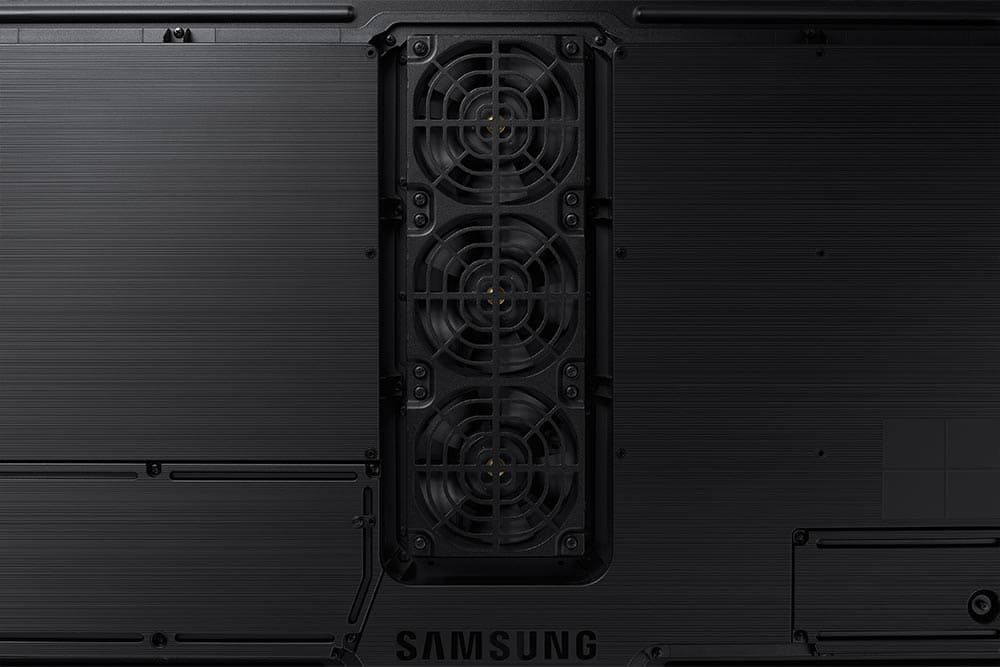

- Prevent humidity for optimal performance with hidden fans in the downside of the display
- An optimum level of endurance equivalent to IK10 and extra durability with IP56 Ingress Protection
Size
Features
Clear and vivid anytime, anywhere
The OH55A is UL-verified for outdoor visibility, offering greater brightness than 3,500nit and 24/7 performance to deliver crisp content. Plus, a built-in auto brightness sensor automatically adjusts brightness based on any external lighting, for a versatile, operationally efficient display.
* Images and enclosure are simulated and for illustration purpose only.
Powerful performance with slim design
A slim, all-in-one composition enables easy installation, while long-term performance is ensured through IP56 protection, anti-reflection technology, vandalism defense and an efficient cooling system. Plus, an integrated power box condenses operational components and supports an ultra-slim frame.
* IP56 (Ingress Protection Rating): Degrees of protection provided by enclosures (IEC 60529).
** “Conventional” refers to Samsung’s OHD series.
*** Images and enclosure are simulated and for illustration purpose only.
Optimized protection in a variety of outdoor conditions
With certified, IP56-rated protection and four newly added internal fans, OH55A delivers robust reliability to withstand physical impact as well as dust, water or humidity that might affect the display. This ensures optimized operation in a variety of outdoor conditions for consistent performance.
* IP56 (Ingress Protection Rating): Degrees of protection provided by enclosures (IEC 60529).
** Images and enclosure are simulated and for illustration purpose only.
Robust durability for screen safety
Fitted with tempered Magic Protection Glass, the Samsung OHA provides durability that is IK10-rated, ensuring advanced safety and protection against external impact and damage. This ensures the product is safe against vandalism for store manager peace of mind.
* The IK European strength test rating uses a 0-10 scale (where 10 indicates the highest possible protection) to measure the degree of resistance against external impact.
Smooth and seamless content playback
The embedded MagicINFO Player S6, backed by the powerful TIZEN operating system, boosts the overall performance of the display and offers painless content management. This ensures seamless transitions and playback to deliver a better experience for both customers and store managers.
* MagicINFO license must be purchased separately.
Powerful, protective security
The OHA series uses comprehensive three-layer security protection, powered by Samsung’s proprietary Knox technology, supporting application development on the secured platform and minimization of security attacks.
Specs
Panel
- Diagonal Size55"
- Type120Hz E-LED BLU
- Resolution1920*1080 (Full HD)
- Pixel Pitch(mm)0.630 x 0.630
- Active Display Area(mm)1209.60(H) x 680.40(V)
- Brightness(Typ.)3500(peak 4,000) nit
- Contrast Ratio5000:1
- Viewing Angle(H/V)178/178
- Response Time(G-to-G)8ms
- Display Colors8 bit - 16.7M
- Color Gamut72%
- Operation Hour24/7
- Haze0%
