OH75F NEW

A powerful all-inclusive outdoor signage solution featuring an embedded power box

Key Highlights

  • OutdoorOutdoor
  • 24/7 operation24/7 operation
  • High BrightnessHigh Brightness
  • MagicInfo S4 powered by TizenMagicInfo S4 powered by Tizen
  • Quad Core CPUQuad Core CPU
  • All-in-one solution complete with an embedded power box, along with an ultra-slim depth of 85mm
  • An optimum level of endurance equivalent to IK10 and extra durability with IP56 Ingress Protection
  • A filterless self-cooling system enabling easy maintenance and reduced TCO
  • Excellent visibility under direct sunlight through 2,500-nit high brightness and anti-reflection glass
  • An advanced content management solution via SSSP 4.0 powered by TIZEN

Features

An all-encompassing array of pre-assembled, outdoor-ready features

The OHF Series displays feature a thinly-designed, all-in-one composition which enables convenient and easy installation. A thorough package equips the displays for long-term performance, and includes ingress protection, anti-reflection technology, vandalism defense and a highly-efficient cooling system, among others. In addition, an integrated power box condenses operational components and accommodates an ultra-slim (85 mm.) frame. Embedded network hub and Wi-Fi functionality further reduce TCO by eliminating the need for a router when linking products, and allow smooth connectivity should the display be exposed to heat or water.

Robust IK10 endurance

Tempered, IK10-certified* Magic Glass (5 mm.) provides the OHF Series displays with durable advanced protection against a range of external and environmental factors. Should the protective glass break, a strategically-placed gap between the Magic Glass and LCD panel prevents significant damage and enables efficient repair. *The IK European strength test rating uses a 0-10 scale (where 10 indicates the highest possible protection) to measure the degree of resistance against external impact.

Energy-efficient performance

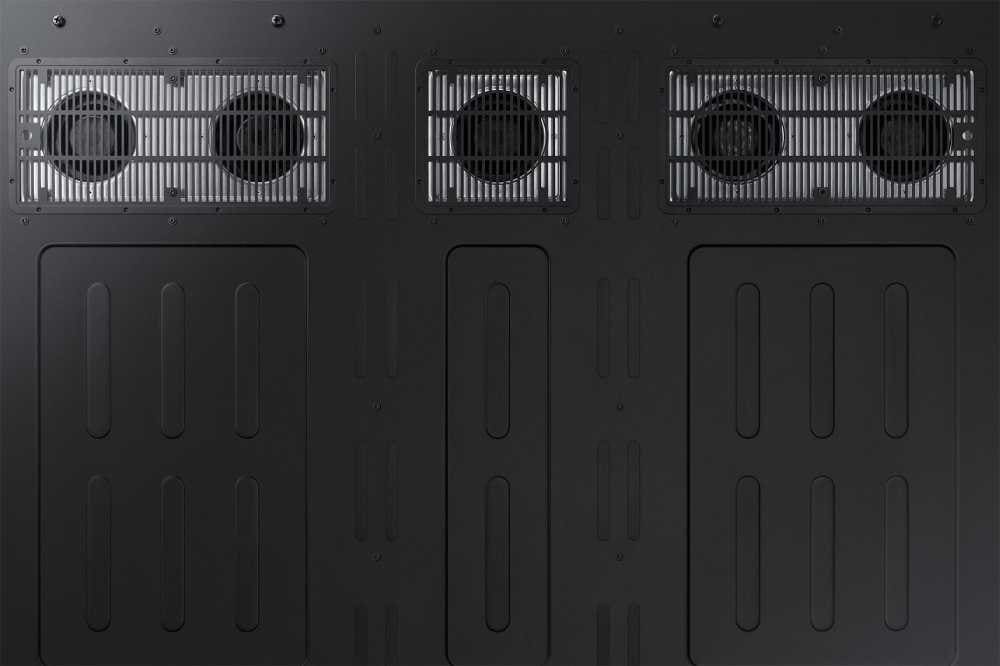

Through advanced thermal control functionality and a filter-free design, the OHF Series displays operate at reduced energy consumption. An integrated heat exchanger modifies signage resources depending on the environment, and ultimately cuts costs for operators.

Excellent and Captivating Visibility

• High Visibility
The OHF Series displays feature innovative Magic Glass, TUV-certified image quality and an Auto Brightness sensor to improve picture quality and optimize message delivery for any viewer. When combined, these features produce high 2,500nit brightness and a 5,000:1 contrast ratio that amplify any type of content*. These powerful displays also include circular polarizing technology that eliminates display blindness caused by polarized sunglasses.
*The 2,500nit brightness and 5,000:1 contrast ratio settings are available for all OHF Series models larger than 24 in.

• Reflection Prevention
Beyond its basic picture enhancement functionality, the OHF Series’ Magic Glass minimizes reflection and enables rich, clear image presentation even when exposed to direct sunlight. Along with their high brightness and contrast ratio, the OHF Series displays’ reflectivity ensures continuous visibility and content integrity in any outdoor setting.

Operate reliably in virtually any environment

Each OHF Series display undergoes rigorous IP56 ingress defense testing to ensure resistance to dust, heat, moisture and other environmental variables that can impede operations. This includes an integrated self-cooling system that keeps the OHF Series displays running in temperatures ranging from -30oC (-22oF) to 50oC (122oF). In turn, operators can feel confident in the displays’ ability to perform 24/7, and without requiring expensive external cooling systems or security measures.

Robustcontent creation and management

Samsung’s MagicInfo Player S4 equips OHF Series users with a new graphic engine that boosts overall display performance while ensuring a seamless content transition. The platform also operates as an advanced content management solution that enables more convenient content creation, scheduling and deployment. MagicInfo Player S4 is robust enough to help large organizations monitor and manage multiple OHF Series displays through a single, centralized server.

VESA-compliant for simplified mounting

To accommodate VESA regulations, users can add optional brackets* to their OHF Series package. Beyond ensuring compliance, the brackets offer greater flexibility to mount displays in preferred locations without having to purchase specialized wall mounts.
*Brackets are only available for the 46- and 55-inch OHF Series display models.

Panel

  • Diagonal Size75"
  • Type120Hz D-LED Local Dim. BLU
  • Resolution1920*1080 (Full HD)
  • Pixel Pitch(mm)0.860 x 0.860
  • Active Display Area(mm)1650.24(H) x 928.26(V)
  • Brightness(Typ.)2500 nit
  • Contrast Ratio5000:1
  • Viewing Angle(H/V)178/178
  • Response Time(G-to-G)6ms
  • Display Colors8 bit - 16.7M
  • Color Gamut72%
  • Haze0%

Resources

  • Build the Signage to Conquer the Outdoor play vedio
    E-Catalog Build the Signage to Conquer the Outdoor

    Check out the superior quality of SMART Outdoor Signage with modern visuals. This video is shot with new 55" OHF series protected by new Dual Magic Protection Glass(Optional).

    88 2016.07.26
  • Built to Last : Samsung Outdoor SMART Signage play vedio
    E-Catalog Built to Last : Samsung Outdoor SMART Signage

    Check out the USP (Unique Sales Point) of SMART Oudoor Signage with easy-to-understand explanation and illustration. Just by following the content, you can be an expert of SMART Outdoor Signage within just 3 minutes.

    64 2016.07.26

Accessories

Accessories

  • IncludedQuick Setup Guide, Regulatory Guide, Warranty Card, Remote Controller, Batteries
  • StandN/A
  • Mount N/A
  • SpecialtyN/A

Media Player

  • Media PlayerN/A
